The Fundamentals and Recent Applications of Micellar System Extraction for Nanoparticles and Bioactive Molecules: A Review



Ebaa Adnan Azooz 1, Rana Kadhim Ridha 2 *, Hawraa Ali Abdulridha 1 *



1 The Gifted Students' School in Al-Najaf, Ministry of Education, Iraq.

2 Department of Dairy Science and Technology, College of Food Sciences, Al-Qasim Green University, Iraq.



Corresponding authors. E-mail: ebaaadnan.ed12@uokufa.edu.iq; ranakhadim@fosci.uoqasim.edu.iq; hawraa1975@yahoo.com



Received: May 21, 2021; Accepted: Aug. 3, 2021; Published: Sep. 6, 2021



Citation: Ebaa Adnan Azooz, Rana Kadhim Ridha, and Hawraa Ali Abdulridha, The Fundamentals and Recent Applications of Micellar System Extraction for Nanoparticles and Bioactive Molecules: A Review. Nano Biomed. Eng., 2021, 13(3): 264-278

DOI: 10.5101/nbe.v13i3.p264-278.



Ebaa Adnan Azooz, Ph.D. in Analytical Chemistry, University of Kufa, Iraq. Her research interests include separation methods, solvent extraction, cloud point extraction, bio-nanomaterials, and environmental studies. She is a lecturer at The Gifted Students' School in Najaf, Ministry of Education, Iraq. Dr. Azooz works as an editor and a reviewer for many scientific journals. She has many published papers in Scopus and Clarivate journals.



Rana Kadhim Ridha, M. Sc. in Analytical Chemistry, University of Kufa, Iraq. Her research interests include nanomaterial separation methods, solvent extraction, and element determination in food. She is a lecturer in the Department of Dairy Science and Technology, College of Al-Qasim Green University, Iraq. Mrs. Ridha has many published papers in Scopus journals.



Hawraa Ali Abdulridha, Ph. D. in Molecular and Theoretical Physics, University of Baghdad, Iraq. Her research interests include the study of structural properties, electronic properties, graphene sheets, and nanotechnology. She is a lecturer at The Gifted Students’ School in Najaf, Ministry of Education, Iraq. She has many published papers in Scopus journals.



Absract

The basics and uses of the micellar system extraction technique (MSE) for extracting and preconcentrating nanoparticles and bioactive compounds (medicines and vitamins) are covered in this review. Hence, the influential factors of the MSE and applications are offered. The MSE, like any separation process, extracts the analytes in a small phase from the solution to improve analysis quality and remove sample background interference. The MSE has several advantages over other preconcentration and separation methods, such as speed, cheapness, security, selectivity, and safety. The use of toxic organic solvents is reduced or ignored, and the process is economical and environmentally friendly. In the latest works of literature, three different procedures use to extract nanomaterials. So bioactive molecules were separated by two methods with MSE, and this review also provided newly-developed MSE.



Keywords: Nanoparticles, Cloud point extraction, Vitamins, Medicines, Micelle mediate extraction



Introduction

In general, MSE stands for modified extraction methods that use a surfactant instead of an organic solvent. Micelle Mediate Extraction (MME) or Cloud Point Extraction (CPE) are two terms for the MSE. It depends on the formation of the micelle layer (ML) in aqueous solutions, whereby the polar heads on the micelle's exterior and non-polar tails orient themselves into the interior [1-4]. ML is formed by dissolving the surfactants in an aqueous medium, but in an organic medium, reverse micelles (RM) are formed [5-7]. It is possible to describe the micellar system as a thin layer circle consisting of an inward organic pool core and aqueous solutions centered on external surfactant molecules [8-10]. The micellar system (MS) is described by the formation of a hydrophobic layer in an aqueous solution that is controlled by a surfactant [11]. The arrangement of the micelles is shown as an "oil-in-water" structure [12-14]. Micelle formation increases the affinity of analytic species that are dissolved in the organic phase, while the RM is used to attract analytes that are dissolved in the water. The affinity of the specified analytes for the micelle or RM is determined by the micro-environment in which the analytes are dissolved [15]. Fig. 1 and 2 depict the various configurations of the MS and RM. The first time this technique was applied in 1976 for preconcentration and determination of Ni (II) used 1-(2-Thiazolylazo)-2-naphthol (TAN) and Triton X-100 as micellar mediators [16]. Ever since, the technique is still applied in the extraction of analytes (metals, vitamins, organic materials, nanoparticles and other [17]. MSE has been widely studied recently as an environmentally fast, selective, accurate, and green approach to preconcentration and separation of several solutes, providing many other benefits over previous solvent extraction. The MSE is dependent on micelle mediating agents' ability to form ML in water when heated above a certain temperature, known as the critical temperature (CT) [18-20]. Nanomaterials have many forms—for example, cylindrical, tubular, spherical, and platform-form morphology, as they are designed according to the requirements for special applications. The enormous variety of forms and chemical composition of nanomaterials, as well as the possibility of particle surface alterations, make this a vital and active topic of research. Nanomaterials are useful in biological and pharmaceutical applications because they have a special size, shape, and surface area. Also, products made by physical or chemical methods consume a lot of energy and produce toxic waste that is hazardous to the environment. In recent years, using a green strategy to synthesize nanomaterials has proven to be quite beneficial because it is an environmentally friendly, cost-effective, and quick process [144-146]. Several MSE papers are discussed in this review. The principles and factors that affected the MSE will be reported in the next part. In addition, the description of the methods used by scientists for extraction of both nanoparticles and bioactive molecules and the essential parameters used in the research are outlined in the next paragraph.



Fig. 1 The arrangement of the micellar system (MS).



Fig. 2 The arrangement of the reverse micellar system (RM).



MSE General Principles

The MSE is based on the ML synthesis when an aqueous medium containing a micelle mediate reagent (MMR) and heating above CT. The low volume of surfactant occurs as monomers in the aqueous medium. The molecules aggregate to form micelles when MMR concentration exceeds critical micellar concentration (CMC) and heating over CT. To avoid interaction with water, the tails (non-polar) connect to the interior layer of a standard micelle. The polar heads, on the other hand, observe water molecules in the exterior layer. [21-24]. Salting-out is a phenomenon that produces ML after the addition of a natural salt such as NaNO3 at a specific temperature (25 ◦C) based on the surfactant. The process separation can be done and improved by the centrifugal tube after ML formation [25]. The under layer already contains hydrophobic species and most of the MMR. The aqueous layer (AL) includes any components or metals that cannot be aggregated into ML. Heating helps to aggregate micelles with fewer repulsions and form a separation phase by dehydration of polar groups of the micelle mediate reagent [26,27]. This procedure was explained in Fig. 3.

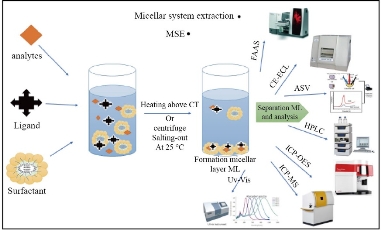

Fig. 3 MSE general procedure.



Analyte Influence Factors

Hydrophobicity is an essential condition for the incorporation of analytes into the ML. The analytes should, when separated by MSE, be either hydrophobic or convertible to hydrophobic particles [14]. Therefore, it is difficult to separate some hydrophilic molecules directly from MSE. Metal ions, for example, should be chelated with a suitable reagent before MSE to convert them to hydrophobic species [7,8]. However, organic molecules (proteins, phenols, azo compounds, drugs and others) may be separated without chelation [28-30].



The pH effect

The medium pH is a major factor that controls MSE, in particular for ionic molecules like metals, amines, amino acids, and azo compounds. Every MSE approach has an optimal pH range for extracting analytes quantitatively. In this range, the accidentally discharged form of the solutes exists and can interact with the micelles [14,20]. The pH can improve the extraction efficiency of the extracted species, which has a significant impact on the extraction of metal ions by MSE [30]. By using alizarin red S as well as cetyltrimethylammonium bromide (CTAB) with Triton X-114, the pH medium is essential to the separation between Sc (III) and several lanthanides of clay samples, at room temperature in the presence of KI (0.1 M). Sc (III) is separated above pH=4 from the other lanthanides [31]. In another research, the extraction of iron and mercury in food samples is excellent at pH 9 by using an azo compound [methyl phenyl thiazolylazo azo]-3-methyl-4-methoxy-2-naphthol (MPTAN) and tritonX-100 as a surfactant [32]. Due to the presence of 4-(pylorophenyl)-1-(pyridine-2-yl) thiosemicarbazide (HCPTS) in the presence of TritonX-114 in the form of Pt (IV) as a steady hydrophobic species with thiosemicarbazide derivation, it was possible to separate Pt (II) from Pt (IV) at pH 7. This method has been established to analyze Pt in highly accurate blood plasma and urine [33]. Many studies with different factors affecting extraction were described in table 1. Because protonated phenols are hydrophobic and can be extracted into ML at a lower pH, the extraction of phenols requires a lower pH value in principle. The optimal pH value is chosen at 5 [34]. To separate parabens from water samples, the basic pH value is used. Since the hydroxyl group has been fully deprotonated and given full percentage recovery at pH 9, parabens appear in a more negatively charged form. As a result, when parabens are deprotonated, hydrogen bonding, electrostatic attraction, and deprotonated interaction can be the most important interactions between positively charged βCD-IL and parabens. [38]. The pH value depends on the structure of the analytes, extraction species, ligands, and MMR.



Table 1 Effects of some factors on MSE

Analytes	Surfactant	pH	T (°C)	Salts / Ligands	Applications	Ref.
Auxins	Triton X-114	Acidic ≥ 5	-	(AEMP)	Plants	34
Ag(I)	Triton X-100	-	90	KNO3/ vitamin C	Water and soil	39
Cr(III)Cr(VI)	Triton X-114	5.5	40	-          / TAN	Sediment	36
Al(III)	PONPE 5.0	5.8	70	8-hydroxyquinoline	Water	37
Paraben	DC193C	9	30	-/ βCD	Water	38
Cu(II)Zn(II)	Triton X-114	6.5	45	NaCl / DBDP	River and waste water, blood, and soil	45
Mg(II)	Triton X-100	Basic	90	-/ Rhodamine–B	Food and water	46
Mn(VII)	Triton X-100	Acidic	90	-/ PANN	Food and water	13
Pb(II)	Triton X-114 and  CTAB	1	23	Crown ether	Biological	47
U(VI)	Triton X-114 and  CTAB	3.5	20	KI + KNO3 / H2DEH[MDP]	water	49
Cu(II)	Triton X-100	2	15 - 30	Na2SO4/ dithiazone	water	55









































Note: 2-aminoethyl)-1-methylpyrrolidine (AEMP), 1-(2-thiazolylazo)-2-naphthol (TAN), β-cyclodextrin (βCD), N, N’-diacetyl-4-bromo-2,6-di(aminomethyl) phenol (DBDP), 3-[(2-Pyridyl azo)]-1-nitroso-2-naphthol (PANN), 4′,4''(5'')-di-tert-butyldicyclohexano-18-crown-6 (Crown ether), P, P-di(2-ethylhexyl) methane di phosphonic acid) (H2DEH[MDP]).



Surfactants

In MSE, the surfactant is a necessary chemical that forms a micellar layer that catches the substance to be extracted. The amphiphilic substances must have a charged or hydrophilic head and a hydrophobic tail. The capacity of MMR solutions to enhance hydrophobic species solubility (e.g., medicines, azo compounds, optical samples, antioxidants, stabilizers) in an aqueous solution is one of their most important qualities [5-7]. And that is according to the capacity of surfactant molecules to aggregate over a fixed concentration related to the CMC and to create nano-sized aggregates, especially micelles. Micelles with hydrophobic cavities are used as Nano-containers to increase the solubility of organic substances in aqueous media. Hydrotropic modifications that alter the aggregation and behavior of micellar structures, such as their solubility features, may be used to achieve an additional effect [39-41]. According to the structure of the polar group, MMRs are categorized into four types (non-ionic, cationic, anionic, and zewitter ionic). Scheme 1 is a graphical summary of the various types of surfactants and examples of their main properties. On-ionic surfactants are water-soluble and have a weak ionization. Nonionic surfactants of the Triton® X series are a subset of specific nonionic surfactants. The functional group of these compounds is Polyoxyethylenes, which has a general formula of RO (CH2CH2O)n H. This group can't function as acids in water because the hydrogen atom isn't ionizable. The polyoxyethylene-7.5-octyl phenoxy ether (Triton X-114) and polyoxyethylene-9.5-octyl phenoxy ether (Triton X-100) are used widely in MSE. Also, non-ionic surfactants are used alone or mixed with ionic surfactants in MSE [43]. Because of their lipophilic composition, they are very stable and are unaffected by the presence of salts, bases, acids, or dissolving agents for both organic and aqueous solutions [9-11]. In the MSE, the amount of surfactant is also the most important factor. The ML is only available in a very limited concentration range. Due to a decrease in the enhancement factor, increasing surfactant concentration reduces extraction efficiency [44,46]. In some cases, a mixture of some categories of surfactants is used to enhance MSE performance. Triton X-114 and Cetyl trimethylammonium bromide (CTAB) were used in the micellar system to separate Pb in biological tests. This addition causes the creation of mixed surfactants which enhances the solubility of the micellar solution in water. Also, rising the CTAB amount would help raise the CT of the method. The charges on the micelle's surface will cause electrostatic repulsive forces between micelles, which will prevent micelle formation at lower temperatures [48]. CTAB was added to TritonX-114 to reduce the CT of the device from 28-20°C using this concept for uranium extraction in an acidic medium [49]. In the Table 1 report, these ideas were employed in several investigations.

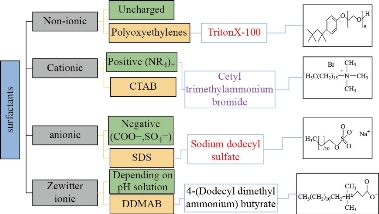

Scheme 1 Classification of surfactants and examples.



Salting-out effect

Salting-out is a phenomenon used to improve extraction efficiency. In an aqueous solution, additional salts increase ionic force and break the hydration shell of metal ions. The structure and concentration of additional salts have a significant impact on MSE [6,7]. In the absence of a significant quantity of electrolyte, the non-electrolyte becomes less soluble, depending on the salting-out procedure. Increasing non-polar interactions among micelles by adding salt to the micellar medium resulted in increased dehydration between them. Turbidity is created when the volume of surfactant crosses the CMC, and the ML is formed [50]. Using the salting-out process in MSE may often eliminate the heating step, reducing the time required for the extraction procedure [5,8]. For extraction, metal ions were added to NaCl at a lower required temperature to form ML of Triton X-114 and apply this procedure to biological samples [45]. With the addition of 1.5 M salt to the MSE process, the temperature drops to 25 ºC, resulting in better separation and the elimination of the need for tools such as a sonicator to increase the temperature. Na2SO4, KOH, NaOH, K3PO4, and KNO3 are common salts used for MSE and phase separation [8]. Sometimes, the observation is that salts with a higher ionic force form a greater separation. For example, SO42- ions provide a good separation as they have a higher affinity for water compared to water-water affinity. On the other hand, the salting-out result of Na+ is much greater than that of other tested cations, which also achieve a high Gibbs free energy of hydration [51]. The parameters are reported in table 1. Salt has a critical role in extraction with the application of a surfactant as it increases the separation. Despite this, higher salt concentrations reduce the efficiency of surfactant recovery and allow the surfactant to be more soluble in water due to a decrease in extraction efficiency. In many of the studies conducted, the amount of salt should be between (1.0-2.0) M. Smaller amounts do not allow the surfactant to fully carry out the separation, while greater amounts of many salts, like Na2SO4, form a precipitate that inhibits the separation and also the extraction [52]. Researchers chose KNO3 as salt for extraction and determination of Cu (II) in real samples because it produces excellent results and has a low detection limit (D.L.) [7].



Temperature and time effect

Temperature is one of the MSE parameters, and the temperature effect is throughout the entire extraction method of the micelles aggregation. Higher heat supports the backward extraction method. Besides that, high temperatures can trigger the denaturation of biomolecules, especially enzymes and proteins, which could be damaged just above the ideal temperature [53]. At a temperature higher than CT, the ML is disturbed by dehydration of the micelles and the transfer of biomolecules towards the surfactant happens more easily, leading to higher extraction and recovery [54]. Even then, the temperature must be closely regulated because the high temperature induces instability in MSE and reduces the recovery rate [13]. In certain situations, in the presence of a large amount of salt (salting-out phenomenon), separation could take place at room temperature [55]. Even with preconcentration, the best heating time and temperature are required to achieve a simple and effective ML. Heating time response is a kinetic function while the temperature is a thermodynamic function [11]. The aggregation of micelles is specifically applied by the behavior of the employed surfactant. The optimum temperature obtained for Hg (II) extraction was 35 ◦C, and a heating time of 5 minutes in a water bath was sufficient to achieve quantitative extraction [56]. In a similar study, 10 minutes at 25 ◦C was sufficient to form an excellent separation and obtain a quantitative analysis. This time, there is no improvement in separation [57]. In some cases, it displays instability of separation with the interference of salt in the MSE process. Meanwhile, extraction times shorter than 5 minutes are not recommended because ML must be incomplete and only begin to occur. So, even for this process, the ideal time would be in the range of (5-10) min. A temperature exceeding 90 ◦C induces evaporation of the solution, which results in the loss of the desired sample. Low temperatures (below 20 °C) limit the separation because the analytes are immobile at low temperatures. Mice couldn't work well either at the time [11-14].





Applications of MSE in Literature

Preconcentration and separation procedures with MSE are widely applied to separate and extract different analytes from samples [18]. It gets major attention since it is the simplest, rapid, and most flexible procedure for preconcentration and hydrophobic complex extraction from the aqueous environment [13]. Depending on its large recovery and concentration factor, MSE is described as a real alternative to preconcentrate methods [58]. It is known as the green method due to the use of media diluted extractor solutions as a surfactant that is relatively cheap, leading to less output of substances [59]. It reduces the use of toxic chemicals, which is beneficial to both human health and the environment. MSE is now used at room temperature and combined with various devices (explained in Fig. 3) to separate a wide range of species, including nanoparticles, biomolecules, organic materials, and metal ions.



Separation nanoparticles by MSE

Nanotechnology has sparked interest in a variety of sectors recently, including chemistry, medicine [60], biotechnology [61], and the food industry [62], among others, due to the unique physical and mechanical properties of nanoparticles compared to bulk and microscale materials. In this part of the review, the applications of important material, nanoparticles (NPs) are used in many industries and applications because they have a major function in our lives [63]. Part of it is released into the environment as a result of its increased usage, causing some damage. Toxicity is determined by the dosage as well as the route of ingestion [64]. Table 2 summarizes the possible medical risks associated with some NPs. Researchers in chemistry have difficulty determining NPs. In actual samples, the concentrations of NPs are very small and below the D.L. for most analytical instruments. First, before the analysis, a process of preconcentration is necessary. The commonly used NP preconcentration methods, i.e. ultra-centrifuge and ultra-filtration, change the physical character of NPs, such as density polarization, aggregation, and particle diameter variations [65,66]. Extraction methods are used to separate carbon NPs very well [67]. NPs were widely used in the MSE at the time in three procedures:

(1) MSE was used mainly for preconcentration of NPs from real samples [68].

(2) NPs can act as a catalyst phase to support specific species in the surfactant-rich phase.

(3) NPs have a special chemical composition; they are used as optical sensor material. This section will go through each of these directions. Scheme 2 explains these methods. In the first role, discussion of preconcentration and extraction of NPs by using MSE.

The use of silver nanoparticles (AgNPs) as antibacterial agents in the industry has resulted in an increase in their prevalence in the environment [105]. AgNPs were exclusively extracted from biological water tests without affecting their shapes and sizes by MSE with Triton X-114. In the presence of salts such as NaNO3 or Na2S2O3 to improve AgNPs extraction efficiency. The maximum extraction efficiency for AgNPs was measured at pH ∼3.0−3.5. The technique was first used for the separation of NPs [69]. MSE investigated the extraction of Ag NPs from nine municipal wastewater treatment plants (WWTPs) in Germany. In the absence of Triton X-114 as a surfactant, EDTA was used as a chelating agent. Then dissolve ML in ethanol and be measured by ETAAS. The D.L. registered 0.7 ng/L [70]. In the other study, Triton-X114 was used to remove AgNPs from real samples into an ML, which was collected after a 10-minute incubation at 40 °C and centrifugation. This indicates a low D.L. of 2 ng/L and a preconcentration factor of 242, indicating that AgNPs are not removed when thiocyanate is present [77]. Copper oxide NPs (CuONPs) are separated from water using the MSE technique. NaCl (10 mM - 0.2 M) and pH were set to 9.0 using Triton X-114. The separated layer was improved by centrifugation (25 ◦C, 10 min., 3000 rpm) after heating at 45 °C for 40 minutes. After that, the ML was collected for examination and CuONPs determination. FT-IR, TEM, zeta potential, and an N2-Brunauer–Emmett–Teller (BET) surface area sample were used in the investigation. During digestion with both hydrogen peroxide and nitric acid within a microwave device, the Cu sample was determined by ICP-MS. This research improves the MSE process with a high potential for nanoparticle extraction from waste [71]. The CuO NPs were separated from wastewater samples using a specific MSE process. CuONPs are removed using Triton X-114 (0.3 percent w/v) at pH 8–10, with NaCl as a salt. CuONPs were determined using an ICP-MS detector, and particle sizes were calculated using a TEM. The recovery from wastewater solutions has affected over 88% of CuO NPs [72]. A preconcentration and selective MSE process of AuNPs from drinking water and ETAAS determination. The process involved chelating AuNPs with Triton X-114 and Na2S2O3 before transferring them to the ML. The TEM analysis revealed that the extraction method had no impact on the nano composition of AuNPs, implying a cost-effective separation method. Prior to determining this, ETAAS was able to take small sample size measures using a large number of Micelle Mediate Reagents [73]. The second role of NPs is to behave as a layer to protect rare species in the ML. The use of NPs for trace element separation and preconcentration in real samples is well known [74]. Modified or unmodified AgNPs were applied in MSE and had successful results for preconcentration of a tiny concentration of metal ions. Modified AgNPs have the ability to carry metallic ions like Cu (II) and Ni (II) ions and separate these ions by using the sodium salt of 2- mercapto ethane sulfonic acid and Triton X-114. This procedure allows us to transfer tiny amounts of metal ions into the ML. The D. L. is 2.4 and 2.1 ng/L for Cu (II) and Ni (II), respectively [75]. On the other hand, for extraction, Cr (III) and Cr (VI) used unmodified AgNPs as a support carrier with the present Triton X-114 [76]. Many examples were reported in table 3. In addition, these NPs help to extract and separate biomolecules and organic compounds. For determination of vitamin B12 in urine and plasma, using Triton-X100 as a surfactant and vitamin B12 complexation by silver nanoparticles and chitosan (AgNPs-CH) coupled with MSE. The presented approach was originally followed by fluorimetric detection [83]. The multi-walled carbon nanotubes (MWCNTs), nanodiamonds (NDs), and hybrid nanoparticles (NDs-MWCTNTs) were also compared as a catalyst phase in the micellar system of the anionic surfactant SDS. Also, in the end, they reached the conclusion that NDs were ideal for the separation of Fluoranthene and changing the MS procedure [84]. On the other hand, the anti-hepatitis C medicine Veltapasvir was predicated on using a non-ionic surfactant, polyethylene glycol 6000 (PEG 6000), graphene oxide (RGO), with cobalt hydroxide nanoparticles (CHNPs) as a catalyst layer. The MSE was very good at removing impurities and eliminating interference from co-existing species. The purpose of this study is the determination of the drug in pharmaceutical tablets by fluorimetric detection [85]. Table 3 lists the examples that were chosen. This combination is often seen in the review as a modern nano-extraction technique dubbed ‘extracting nanomaterials from the micellar system’. The chemical characteristics of NPs dictate the third function of employing them. In MSE, they were detecting substances. NPs have also demonstrated significant advantages over innovative analytical approaches, particularly MSE procedures, according to sensing activities. The size, structure, and inter-particle length play a role in the high absorption coefficient and color-tunable photocatalytic action. A growing interest in AuNPs-based sensors has resulted [94]. Table 4 summarizes some of the cases. Several AuNPs-based spectrometric sensors were documented for the determination of various analytes. The quantification of Hg (II) ions has piqued their interest in them [95]. Hg (II) ions can now be separated and quantified by applying a new process. The use of a hyperbranched thermoresponsive polymer for MSE, as well as a spectrometric probe (AuNPs) for detection of Hg (II) ions. The polymers contain three substances. Hyperbranched poly ethylenimine (HPEI) with isobutyramide (IBAm) end groups (HPEI-IBAm) coated with AuNPs were used to enrich and isolate Hg (II) using quick precipitation and centrifugation. The work's benefit was that their colorimetric sensor's color shifted from red to fawn. They are also more responsive than the two most commonly used colorimetric sensors (which change color depending on the aggregation of AuNPs) [96]. This simple concept resulted in a more sensitive and selective MSE method [97]. AuNPs are also used as colorimetric probes for AgNPs extraction. Triton X-114 was used for the extraction process, but the colorimetric test consisted of Tween-20 remaining stable AuNPs (Tween-20-AuNPs). Following phase separation, the focused AgNPs oxidized into AgI ions in the ML. Then, increase Tween-20 AuNPs aggregation. As a result, extraction efficiency improved [98]. This branch can act as Fig. 4.



Table 2 Potential health risks of selected nanomaterials

Nanoparticles	Medical effects	Ref.
Silica NPs	DNA damage; liver disease	78
Titania NPs	Oxidative stress	79
CNTs	Geno damage, lung lesions and neurotoxicity	80
Ag NPs	Circulative, gastrointestinal, and central nervous hepatic systems effects	81
Au NPs	Anemia and effects on  body weight	82

















Table 3 Overview of nanoparticles used as layers in MSE methods

Surfactant	Nanoparticle	Extracted	LOD (ng/L)	Detector	Samples	Ref.
Triton-114	AgNPs	Ag(I)	0.15	ETAAS	Water	104
	AgNPs	Cu(II) Ni(II)	2.42.1	ETAAS	Water, wine and beer	75
	AgNPs	Cr(III)+ Cr(VI)	2.0	ETAAS	Water, wine and beer	76
	ZrO2NPs	Pb(II)	2.2	ETAAS	Water, tea and rice	86
	SnO2	Cu(II)Fe(III)	9070	FAAS	Tap, well and lake water	87
	GONPs	V(total)	20	ETAAS	Water, beer and canned drinks	88
	Al2O3NPs	Co(II)Ni(II)Cu(II)	2.62.82.5	ETAAS	Natural water	89
	Fe2O3@C MNPs	Different organics	Different	LC	River and lake water	90
Triton X-100	AgNPs	Vitamin B12	36	Fluorimeter	Urine and plasma	83
	TiO2NPs	Zn(II)	330	Colorimeter	Water, milk and tablets (ZnSO4)	91
Triton X-45	GONPs	Cr(III)	5.0	ETAAS	Potable water and seawater	92
SDS	NDs	Fluoranthene	17	Fluorimeter	River water	84
SDS/PONPE 7.5	Fe3O4NPs	Alfuzosin Doxazosin	160210	Fluorimeter	Urine, tablets and human plasma	93
PEG 6000	RGO/CHNPs	Veltapasvir	40	Fluorimeter	Plasma, urine and tablets	85



















































Note: ETAAS: Electro thermal atomic absorption spectroscopy; FAAS: Flame atomic absorption spectroscopy; LC: Liquid chromatography; LOD: Limit of detection; Fe2O3@C MNPs: Highly hydrophobic polysiloxane-coated core–shell; Fe2O3@C: Magnetic nanoparticles; NDs: Nano diamonds; RGO: Reduced graphene oxide; TiO2NPs: Titania nanoparticles; ZrO2NPs: Zirconia nanoparticles; Al2O3NPs: Alumina nanoparticles; CHNPs: Cobalt hydroxide nanoparticles.



Table 4 MSE approaches employing selective nanoparticles as sensing probes

Surfactant	NPs	Extracted	LOD (ng/L)	Detector	samples	Ref.
HPEI-IBAm	AuNPs	Hg (II)	0.22	Colorimeter	Water	96
Triton X-114	AuNPs	Hg (II)	2.00	Colorimeter	Water	97
	AuNPs	AgNPs	1.00	Colorimeter	Water	98
	AgNPs	Sulfadiazine	2.80	LSPR	Biological	99
Triton X-100	AgNPs	Cu (II)	0.10	SPR	Food	100
	CuRPNs	Citrate	1.70	Colorimeter	Food + drug	101
	CuRPNs	Sulfide	0.40	Colorimeter	Water	102
SDS	AuNPs	Mg (II)	0.10	SERS	Water	103





















Note: SERS, Surface-enhanced Raman scattering, SPR, Surface Plasmon resonance, LSPR, Localized surface Plasmon resonance; MG, Malachite Green, CURNPs, Curcumin nanoparticles

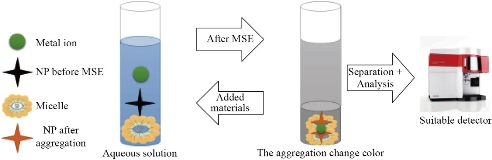

Fig. 4 NPs as optical sensing in a micellar system.



Scheme 2 Three approaches using NPs in MSE.



Separation bioactive molecules by MSE

Many researchers have used MSE for the separation of bioactive molecules like amino acids, proteins, vitamins, enzymes, drugs, and pro-vitamins. This part and table 5 discuss medications and vitamins in particular. Medical determination in the biological matrix is important in a number of biochemical fields, medicine, and pharmacy, including toxicity tests, drug production, and controlling drug concentration [106]. Patients also use more than one medication at a time that can interact with various tests. There are several major differences between humans, and drug levels can vary greatly between individuals [107]. Since the clinical application of a drug is determined by its level in biological fluids, and accurate method of measurement is essential during treatment [109]. Another issue is that medication levels in human fluids and tissue are significantly lower, necessitating pre-concentration prior to determination. Sample solution analysis can interfere with chemicals from biological tests such as organic matter, macromolecules, and salts [110-113]. Isolating proteins with organic solvents or adjusting the pH of the test is one of the most successful sample preparation techniques. However, in other circumstances, a specific method of preparation is insufficient for a complete study. As a result, numerous extraction procedures apply during sample preparation [114, 115]. Table 5 shows many bioactive substances used in MSE with different parameters. Also, on the other hand, bioactive molecules are used as selective ligands to reduce pollution from organic reagents. Aspirin [7], cysteine [133], and 4-(2-chloroacetamido)-salicylic acid [135] use to determine tiny amounts of copper in different testes by Triton X-100, SDS, and Triton X-114, respectively. The findings have shown the efficacy of MSE in the preconcentration and quantitative extraction of copper. The methods were utilized successfully to detect Cu (II) in food and drug samples with high recovery, without cumbersome pre-separation methods, and costly equipment. Vitamins play a specific role in the energy synthesis and the health of organs such as the skin, muscles, eyes, and livers. In various metabolic reactions, such as carbohydrates, lipids, and protein metabolism, they serve as a primer for coenzymes and enzyme cofactors [139]. Vitamin analysis in samples (food, urine, and blood) complicate by many factors, including low and variable concentrations, interference effects, the existence of multiple bioavailable forms (vitamers), reactive structure, and molecular heterogeneity [136]. As a result, researchers face the challenge of developing and validating quick, cost-effective, and reliable methodological approaches for multivitamin detection. However, due to the restricted transfer of vitamin molecules to the surfactant by modern MSE, obtaining an acceptable preconcentration parameter is challenging. To resolve the issue, vitamins B1 and B2 were successfully extracted from a complex food sample using a modified MSE approach involved in the complex silver ion formation with vitamins. This research focuses on the ability of vitamin molecules to form complexes with silver ions in exchange for improved extraction efficiency [136]. Another study used Triton X-100 and sodium salt of 1-Heptanesulfonic acid as an ion pair agent to extract vitamins from biosamples using the MSE method. Some vitamins have extracted using ion-pair micellar system extraction (IP-MSE), which is based on the creation of ion pairs (IP) between analytes and an IP reagent. Since analytes ionize in an acidic medium and form positively charged ions, no analytes were extracted into the ML without the use of an IP reagent [137]. More information are reported in table 5. The methods used for the extraction of vitamins rely on acid hydrolysis or enzyme therapy, so that all bonded vitamins come off the matrix, or all potential vitamins reduce into fewer forms, such as mono or di glutamate from polyglutamate folates. Precipitation of proteins is also a way of removing linkages between peptides and vitamins. Vitamins use in some papers as chelating reagents. Vitamin C is used to separate silver ions from biological samples in the presence of Triton X-100 as a surfactant. This procedure obtained a low detection limit and a high preconcentration factor [39].



Table 5 Application of bioactive molecules in the MSE method

Surfactant	Analytes	Temperature (◦C)	Recovery%	Detector	Ref.
Triton-114	Triptonide	55	96	UV spectrophotometry	108
	Bisoprolol	55	61	LC/MS	116
	Antazoline	40	--	LC/MS	117
	Paracetamol	25	--	FL	118
	Meloxicam	35	92	HPLC/ UV	119
	Venlafaxine	40	89	HPLC/ FL	120
	Arbidol	45	90	HPLC/ UV	121
	Larotaxel	45	93	HPLC/ UV	124
	Vitamin K3 and 1,4-naphthoquinone	25	--	UV spectrophotometry	125
	Vitamin B1	40	93-107	Spectrofluorometric	126
	Cefixime	25	95-131	UV	140
	21 Antidepressants	15-23	94-111	LC-MS	130
	Phenylalanine	40	94.1–107.7	Scanometry	134
	Sulphadimidine sodium	50	94.5-101.3	UV	143
Triton-100	Isoniazid	70	83	HPLC/ UV	122
	Beta-carotene	67	99	UV–Vis	141
	Seven sulphonamides	--	67.0–105.7	HPLC/ UV	123
	Vitamins A and E	70	90.2 - 99.2	MLC	142
	Vitamins B1,B2,B3 and B4	50	78 – 88	HPLC	137
Genapol X-080	Vitamins A and E	50	85.582.6	HPLC/ UV	127
	Flurbiprofen	50	-	HPLC/ UV	128
PONPE 7.5	Terazosin hydrochloride	-10	90-112	Spectrofluorometric	129
SDSA	Vitamin E	10	80-85	HPLC-UV-FI	131
	Vitamin B6	40	88-104	UV-Vis	132
PEG-6000	Vitamin B9	40	95.6–104.2	HPLC	138

































































Note: PEG-6000: Polyethylene glycol 6000; MLC: Micellar liquid chromatography; Vitamin B1: Thiamine; Vitamin B3: Niacinamide; Vitamin B6: Pyridoxine; Vitamin B2: Riboflavin.



Conclusions

Analytes are critical parameters in any separation process. Moreover, the form of surfactant used and its amount, pH, temperature, heating time, and the additional salts, influence factors on the MSE results. The type of used surfactant is the determination by the analytes. In the field of micellar system extraction, many recent and exciting advancements made in the last decade. In the literature, for the application of NPs in MSE can be found three procedures:

1. NPs are directly preconcentrated.
2. MSE is used to absorb inorganic or organic materials, such as nano-sized sorbents such as ZrO2, TiO2, Al2O3, and others.
3. Optical sensing, for example, the use of AuNPs as colorimetric nano-probes.

Vitamins and medications are extracted in two ways: directly extraction and acting as a cheating reagent. Innovative MSE methods in the ultra-trace analysis of different species have a lot of promise in all ways. In general, at around 15–20 °C, the extraction temperature was above the CT of the surfactant. When extracting bioactive molecules, the most commonly used temperature is less than 70 °C. The addition of salting-out at a specific level affects the CMC of the surfactant, assisting the extraction method. MSE is also less hazardous than other forms of extraction methods. As a result of its simplicity, speed, low environmental impact, accuracy, and high optimization capabilities, researchers believe that MSE widely uses in nano and bio applications. Researchers are also increasingly interested in developing new separation techniques. An increasing interest in "green chemistry" is the main reason for research on the subject. Recent articles on MSE improvement, such as RMSE and Dual-CPE, demonstrate that the proposed method is gaining popularity and is becoming an effective separation technique in chemical analysis.
